• 8011
Description

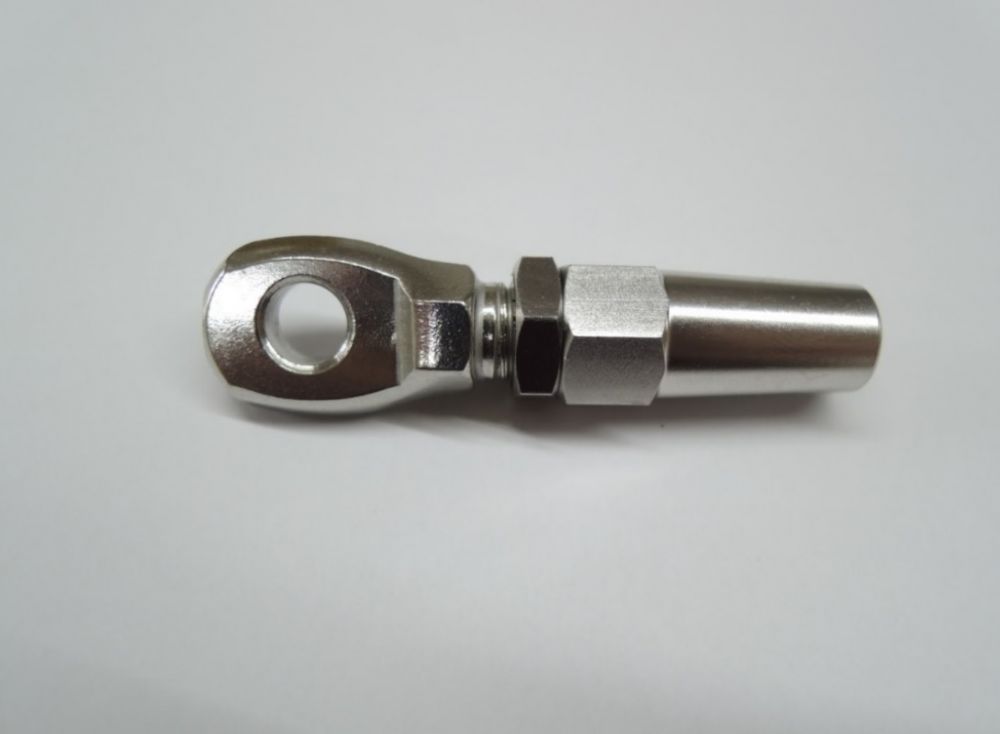

Item no. 8011
Desc.: Eye
Material: S.S. 316
Specification: Ø 3, 4, 5, 6, 8

  • Product Feature
  • Product Specification

Wire rope rigging fitting
This stainless steel terminal is suitable for a wide variety of applications, including balustrades, signs, shade sails and trellises.The terminal is easy to install with common hand tools and is easily adjustable to suit seasonal changes. This stainless steel terminal features three-section alloy steel serrated jaws for a secure hold on wire rope.

* Stainless steel terminal for a wide variety of applications
* Three-section alloy steel serrated jaws to hold wire securely
* No swaging required
* Easy to install with common hand tools
* Adjustable to suit seasonal changes
* Ideal for balustrades, signs, shade sails, and trellises
* Taiwan manufacturing, quality wire rope hardware

1. Available for wire Ø 3, 4, 5, 6, 8mm.
2. Jaws locking system:
(1) OLD type: for wire Ø 3, 4, 5, 6, 8mm.
(2) NEW type: for wire Ø 3, 4mm.

A B C D KW1 KW2 KW3 BL
3mm 5.7mm 6.3mm 57mm 12mm 12mm 10mm 500kgs
4mm 6.7mm 8.3mm 66mm 14mm 14mm 12mm 1000kgs
5mm 7.7mm 10.3mm 79mm 17mm 17mm 14mm 1500kgs
6mm 8.7mm 12.3mm 92mm 19mm 19mm 17mm 2000kgs
8mm 9.5mm 14mm 115mm 24mm 22mm 19mm 4000kgs
