• 8014
Description

Item no. 8014
Desc.:Threaded terminal (Machine)
Material:S.S. 316
Specification: Ø 3、4、5、6、8

  • Product Description
  • Product Specification

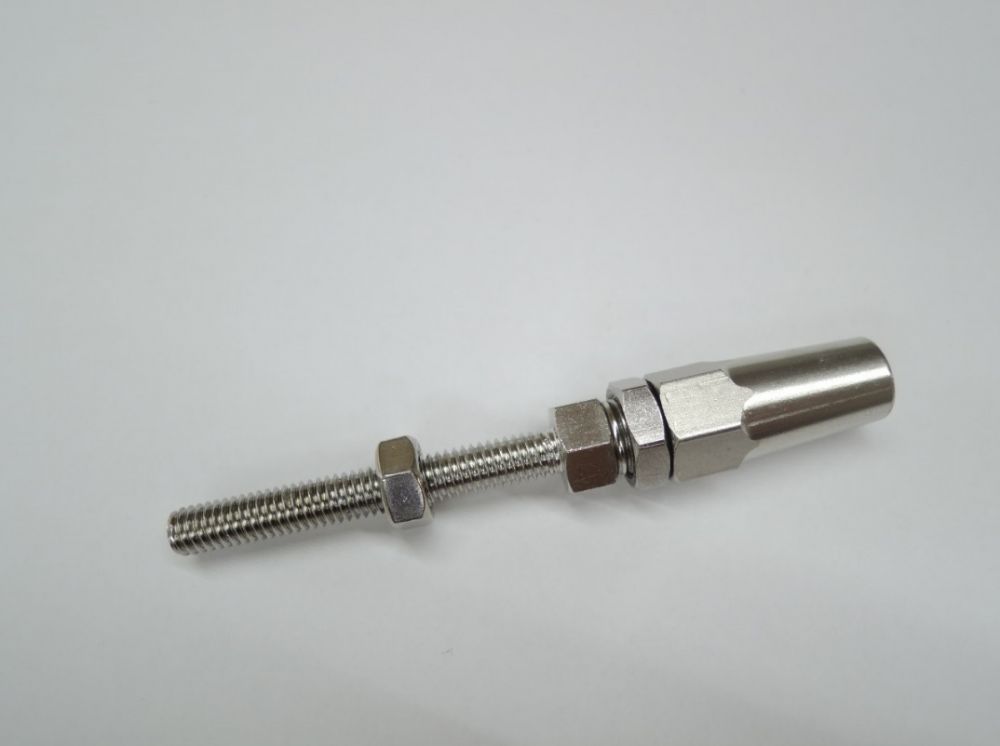

Wire rope rigging fitting
This stainless steel terminal is suitable for a wide variety of applications, including balustrades, signs, shade sails and trellises. The terminal is easy to install with common hand tools and is easily adjustable to suit seasonal changes. This stainless steel terminal features three-section alloy steel serrated jaws for a secure hold on wire.

* Stainless steel terminal for a wide variety of applications
* Three-section alloy steel serrated jaws to hold wire securely
* No swaging required
* Easy to install with common hand tools
* Adjustable to suit seasonal changes
* Ideal for balustrades, signs, shade sails, and trellises
* Taiwan manufacturing, quality wire rope hardware

1.Available for wire Ø 3, 4, 5, 6, 8mm.

A B C D KW1 KW2 KW3 BL
3mm 40mm 77mm M5 12mm 12mm 10mm 500kgs
45mm 82mm M6
4mm 45mm 88mm M6 14mm 14mm 12mm 1000kgs
55mm 98mm M8
5mm 55mm 105mm M8 17mm 17mm 14mm 1500kgs
60mm 110mm M10
6mm 60mm 122mm M10 19mm 19mm 17mm 2000kgs
80mm 142mm M12
8mm 80mm 157.5mm M12 24mm 22mm 19mm 4000kgs
90mm 167.5mm M16
